MRA R1 M-LOK Handguard

MRA R1 M-LOK Handguard

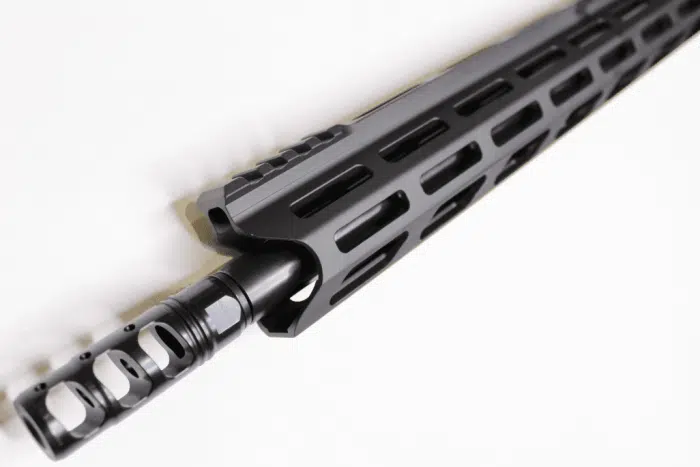

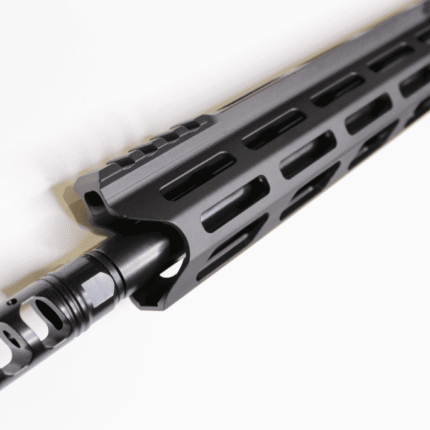

The MRA R1 M-LOK Handguard is a precision machined, lightweight, free-float handguard for the Renegade series of rifles and similar firearms. The extruded 6061-T6 body of the handguards have been CNC milled to dramatically reduce weight, facilitate air cooling of the barrel yet maintain considerable structural integrity.

The lightweight, oversize aluminium barrel nut provides a very secure anchor and the two perpendicular bolts interface with the barrel nut to prevent any forward movement.  The barrel nut has been designed to not require timing to a gas tube making installation extremely easy on gas operated semi-automatic firearms. The Type 3, Class 2 Hard Anodize provides exceptional wear and corrosion resistance while leaving a smooth, uniform, black appearance.

Specifications:

• Precision CNC Machined from 6061-T6 Aluminium
• Lightweight Aluminium Barrel Nut
• Anti-slip features for secure lockup
• Top picatinny rail for front sight
• M-LOK slots at 2, 3, 6, 9, and 10 o’clock positions for entire length of the handguard
• 2 QD Sling Mounts
• Type 3, Class 2 Hard Anodize
• Includes crowfoot wrench and allen key for assembly
• Torque spec on barrel nut is 35ft/lbs
• Inside Diameter is 1.36″
• Made in Canada
• Weights and Dimensions (weights include barrel nut and all hardware)
  • 9.5″   (LxWxH)   9.5″ x 1.5″ x 2.3″   Weight: 7oz
  • 11.5″  (LxWxH) 11.5″ x 1.5″ x 2.3″   Weight: 8oz
  • 13.5″ (LxWxH) 13.5″ x 1.5″ x 2.3″   Weight: 9oz
  • 15″    (LxWxH)    15″  x 1.5″ x 2.3″   Weight: 10oz
  • 17″    (LxWxH)    17″  x 1.5″ x 2.3″   Weight: 11o9
