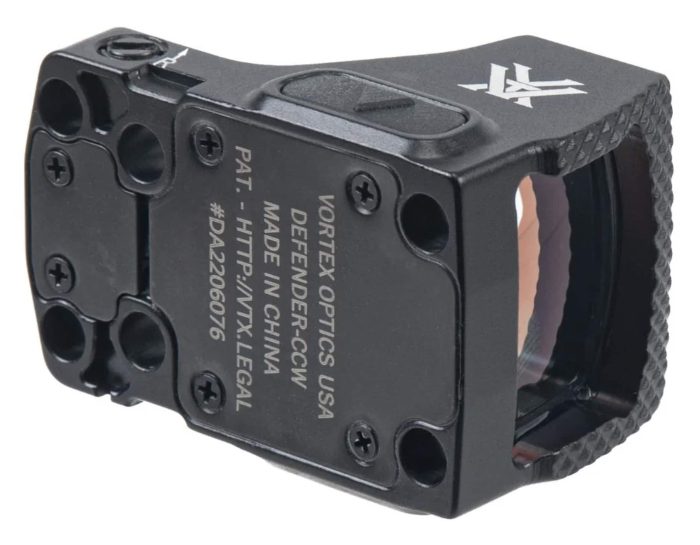

Vortex Defender-CCW Micro Red Dot




Vortex Defender-CCW Micro Red Dot

The micro-sized Defender-CCW delivers maximum optical performance and reliability. The slim profile means no extra bulk or width. A large, class-leading sight window and brilliant, illuminated dot help you lock on target faster, even in low light. Auto-Shutoff to preserve battery life. Motion activated, so it’s instantly ready when you need it. Fits full-size to micro-compacts.

Optical Features:

  • Large Hard-Coated Aspherical Lens – For fast, distortion-free sight picture
  • Fully Multi-Coated – Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission
  • 8 Daylight Bright Brightness Settings: Daylight bright, illuminated center dot aids in faster center-point acquisition in bright daylight conditions
  • Night-Vision Compatibility:  The lowest 2 settings are night-vision compatible

Construction Features:

  • ShockShield™ Polymer Insert-Absorbs shock to the 7075 aluminum body protecting it from everyday abuse
  • Waterproof – O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments
  • SHIELD RMS Footprint
  • Fast-Rack™ Texturing: Aggressive texturing on face of optic for racking slide off any surface
  • Top Mount Battery: Easy battery changes without having to re-zero your optic
  • Low-Glare Matte Black Anodized – Corrosion and wear resistant anodization provides low-glare matte surface
  • ArmorTek – Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt

Convenience Features:

  • Unlimited Eye Relief – Non-critical eye relief for rapid target acquisition
  • Motion Activation with 14-hour auto-shutoff -Automatically activates with motion while 14 hour Auto-Shutoff saves batter life


  • 1″ Shim Plate
  • Picatinny Mount
  • Rubber Cover
  • Lens Cloth
  • CR 1632 battery
  • Custom Tool
  • Most Common Mounting Screw Sets


Every Vortex product comes with a VIP Unlimited, Unconditional, Lifetime Warranty.


Arm yourself with the red dot specifically built for modern use. The micro-sized Defender-CCW™ delivers maximum function without fail, and first-shot quickness you can trust

  • Magnification: 1 x

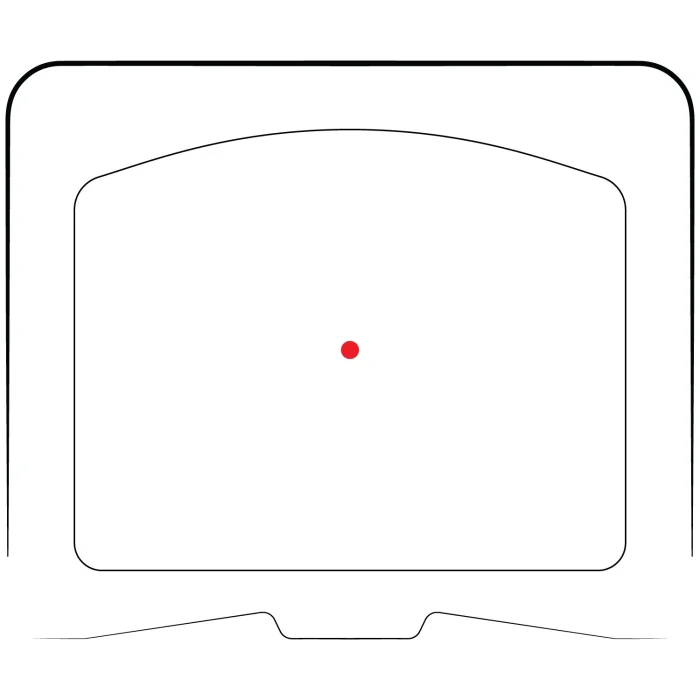

  • Dot Size: 3 MOA or 6 MOA Defender Dot
  • Dot Colour: Red
  • Battery Type: CR1632
  • Battery Life: 9500 hours on setting 6
  • Eye Relief: Unlimited
  • Adjustment Graduation: 1 MOA
  • Max Elevation Adjustment: 110 MOA
  • Max Windage Adjustment: 105 MOA
  • Parallax Setting: Parallax free
  • Mount Type: Shield RMS/RMSc
  • Length: 1.59″
  • Weight: 0.95 oz.

Screw Size & Handgun:

  • M3x0.5 (9.8mm): Sig Sauer® P365XL
  • M4x0.7 (11mm): Canik® TP9SFX/TP9SC | Sig Sauer® P320 M17/M18/RXP | CZ P10® Series
  • M4x0.7 (9.8mm): Glock® MOS | Ruger® 57 | Springfield Hellcat® Series
  • 6-40 (9.8mm): FN-509® Series
  • 6-48 (9.03mm): H&K® VP9 Tactical | Kimber AEGIX/KHX Custom
  • 6-32 (10.8mm): Smith and Wesson® M&P 2.0
