MRA X1 M-LOK DPMS LR308/AR-10 Handguard

(6 customer reviews)

$279.97$409.95

DESCRIPTION

Description

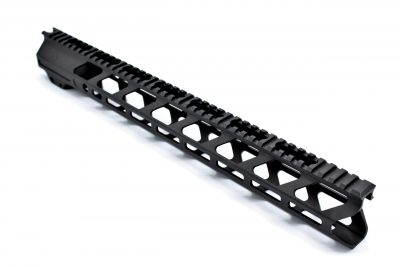

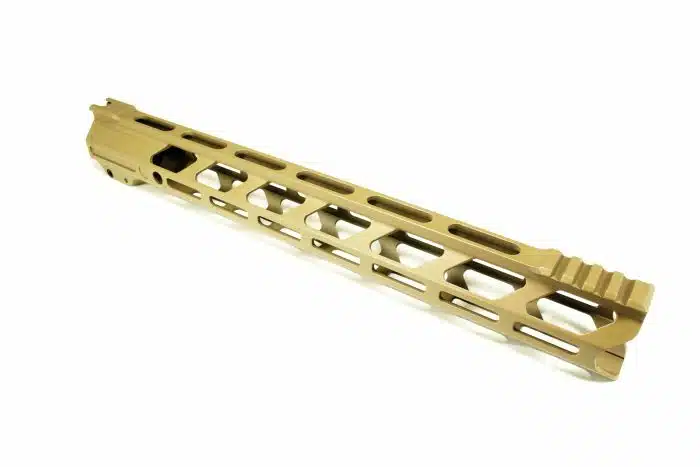

The MRA X1 M-LOK DPMS LR308/AR-10 Handguard is a precision machined, lightweight, free-float handguard for the DPMS High Pattern LR308 or BCL102 and similar firearms.

The extruded 6061-T6 body of the handguard has been CNC milled to dramatically reduce weight, facilitate air cooling of the barrel yet maintain considerable structural integrity.

The lightweight, oversize aluminium barrel nut provides a very secure anchor and the two perpendicular bolts interface with the barrel nut to prevent any forward movement.  The barrel nut has been designed to not require timing to the gas tube making installation extremely easy.

The unique, anti-rotation, rail lock will work with any DPMS High Pattern LR308 or similar type upper receiver ensuring perfect alignment of the handguard.

The Type 3, Class 2 Hard Anodize provides exceptional wear and corrosion resistance while leaving a smooth, uniform, black appearance.  All Cerakote is applied after Hard Coat anodizing.

Specifications

  • Precision CNC Machined from 6061-T6 Aluminium
  • Lightweight Aluminium Barrel Nut DPMS LR-308 pattern (Armalite Pattern Barrel nut available separately)
  • Anti-rotation and anti-slip features for secure lockup
  • Top picatinny rail for front sight (DPMS High Pattern)
  • M-LOK slots at 3, 6, and 9 o’clock positions for entire length of the handguard
  • 2 QD Sling Mounts
  • Type 3, Class 2 Hard Anodize

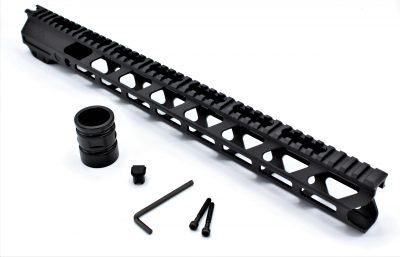

  • Includes crowfoot wrench and allen key for assembly
  • Torque spec on barrel nut is 35ft/lbs
  • Inside Diameter is 1.53″
  • Made in Canada
  • Weights and Dimensions (weights include barrel nut and all hardware)
    • 15″    (LxWxH)    15″  x 1.746″ x 2.458″   Weight: 11.5oz
    • 17″    (LxWxH)    17″  x 1.746″ x 2.458″   Weight: 12.50z

SPECIFICATION

The MRA X1 M-LOK DPMS LR308/AR-10 Handguard is a precision machined, lightweight, free-float handguard for the DPMS High Pattern LR308 or BCL102 and similar firearms. The extruded 6061-T6 body of the handguard has been CNC milled to dramatically reduce weight, facilitate air cooling of the barrel yet maintain considerable structural integrity.

VIDEO

REVIEWS

6 reviews for MRA X1 M-LOK DPMS LR308/AR-10 Handguard

Quality
93%
Price
93%
Service
93%

Reviewed by 06 customer(s)

Sort by

  • Avatar

    Peter

    I ordered this barrel for

    I ordered this barrel for a Stag 10 build that will ultimately end up being my primary hunting rifle. Ryan was extremely helpful and more importantly, available, when I had questions on some specific details about MRA barrels. Customer service is important to me. The barrel arived on time and well packaged. The fit and finish was exceptional. Remarkably my newly completed build has ran perfectly with only one… ONE feed issue in the first 10 rounds (cheapest stuff my buddy had kicking around) and I'm leaning towards a sticky mag for that. Having said that, Ive only put about 150 rounds total through the beast. I was taken back with some of my early groups (1-1.25MOA) despite the stock trigger on the Stag being the worst, but unfortunately a scope issue had me chasing my tail later in the session. Further testing must be done to determan accuracy but I believe this barrel will outshoot me any day of the week. The stock Stag barrel comes in at 52.8 ounces and thats almost 13 ounces heavier then the MRA. I believe this barrel has been key in my successful attempt to build a light weight, accurate and ultimately reliable rifle.

    November 23, 2022
    Verified Purchase

    Share on

    Helpful?

  • Avatar

    Neil

    Hand guard is very nice

    Hand guard is very nice, great fit and finishing.

    November 23, 2022
    Verified Purchase

    Share on

    Helpful?

  • Avatar

    Craig

    Handguard fitment was good and

    Handguard fitment was good and I really like how it feels in my off hand. Looks great on my Stag 10.

    November 23, 2022
    Verified Purchase

    Share on

    Helpful?

  • Avatar

    Warren

    Real nice forend fits great

    Real nice forend, fits great!

    November 23, 2022
    Verified Purchase

    Share on

    Helpful?

  • Avatar

    Trevor F.

    Once again Maple Ridge Armoury

    Once again Maple Ridge Armoury has out done themselves. The fit and finish is second to none.

    November 23, 2022
    Verified Purchase

    Share on

    Helpful?

  • Avatar

    Jared A.

    Great look fit and finish

    Great look, fit and finish is clean. Happy to purchase a Canadian made product.

    November 22, 2022
    Verified Purchase

    Share on

    Helpful?
